Long Life Portable Co2 Laser Marking Machine For Plastic Bottle
Description
Long Life Portable Co2 Laser Marking Machine for plastic bottle, it can mark on PET bottle high speed production line. Mark the manufacturer date, characters, logo on pet bottle.
Product Features
1. Compact design and fast installation
2. Easy to be integrated at any position of the production line
3 Original design, small size and lightweight, equiped with a small table or mounting bracket with the use of production line
4. More further environmental protection and energy saving.
5. Un-contact processing, more environmental protection, lower power, fast laser marked and cost economy.
6. Easy to use and Excellent compatibility.
7. Simplicity of operation, easy to use, powerful anti-jamming performance, enough memory, multiply input and output interface, use with automatical anti-counterfeit and anti-disorder system
8. Adopt import laser, more safer and faster.
Application
It can be applied to used for pet bottle, perfume bottle, medical package, shampoo bottle. It can mark manufacturing date, characters, logo on it.
Specifications
| Machine Type | co2 laser marking machine |
| Laser Type | American SYNRAD or RF laser source |
| Laser output power | 10W | 30W | 60W |
| Laser tube life time | 30000-40000 hours |
| Applicable materials | Non-Metallic Materials |
| Standard Working area | 110mm*110mm |
| Optional Working area | 70mm*70mm, 140mm*140mm, 175mm*175mm |
| Marking depth | 0.01mm-0.3mm |
| Maximum marking speed | 7000mm/s |
| Laser wavelength | 10.64um |
| Minimum Line Width | 0.015mm |
| Repetition Accuracy | ±0.01mm |
| Power Supply | 220/110V(50HZ/60HZ) |
| Machine power consumption | 300W/1.2KW/2KW |

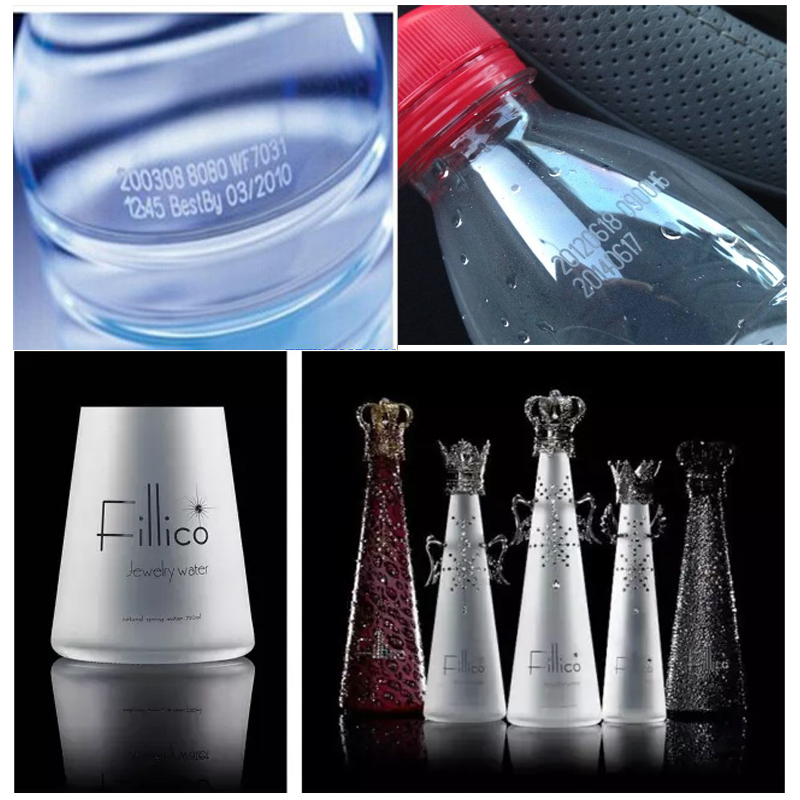

Marking Samples
Packaging and delivery
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-14 days after received your payment.
