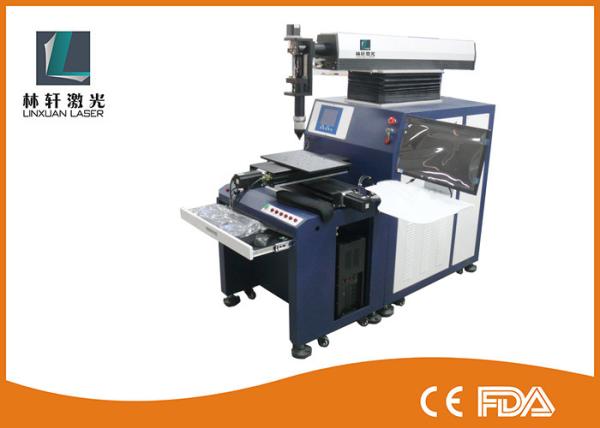

400w Multifunction Portable Optical Fiber Laser Welding Machine for Electronic Parts
Description
This type D8 Series laser Welding Machine is special for the Teapot and similar products welding application. It was controlled by the computer completely and welding speed is very fast and high precision .
All of our laser welding machines have more advantages as below :
1. Mechanical designing is more stable and flexible.
2. CE,ISO and FDA Certificates for it .
3. Equip self protection system and EMI technology make the machine working more stable during the
working .Our each laser welding machine also equip laser energy feedback system to keep the laser power stable during the welding action .
4. Complete Technical Team with 8 years Service experience
Introduction
Suitable for welding of thin plates within 1mm; 3D work bench and the master unit are integrated; can weld space curve and welds of high variable, applied in medical, electronics, battery, instrument, etc
Suitable materials and application

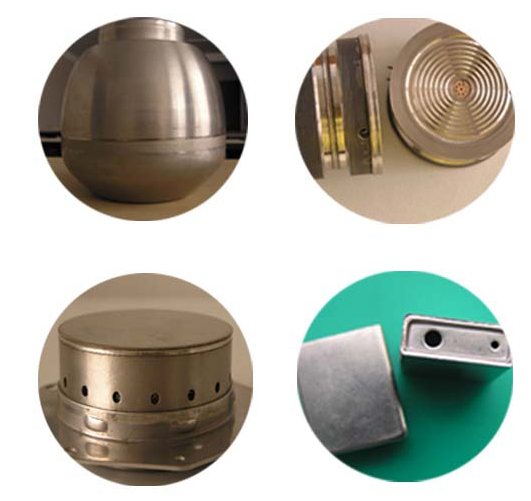

Suitable for welding of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode (triode), aluminum alloy, laptop shell, mobile phone battery, door handle, mould, electric apparatus fittings, filter, nozzle, stainless steel products, golf head, zinc alloy artworks
Weld point, straight line, circle, square or any plane graphs drawn by AUTOCAD; weld vertical track.
Technical parameters
| Model | LX-D8 |
| Maximum laser power | 400W/300W/200W |
| Laser wavelength | 1064nm |
| Laser welding depth | ≤4mm |
| Pulse width | ≤20ms |
| Laser welding frequency | ≤100Hz |
| Adjusting range of light spot | 0.1-3.0mm |
| Size of light spot | 0.2-3.0mm |
| Integrity power | ≤14KW |
| Power supply | 380V/3-phase/50Hz 220V/Single phase/50Hz |
| Maximum bearing of standard work bench | ≤100kg |
| Stroke of work bench | 200x300mm or As request |
| Repeating precision of work bench | ±0.01mm |
| Positioning precision of work bench | ±0.02mm |
| Sighting positioning system | Red light, CCD monitor system (optional rotary clamp) |
| Cooling method | Water cooling |
| Master unit dimensions | 1600*800*1800mm |
