Label Laser Spot Welding Machine Solar Modules With CCD Camera Cooling Type
Description:
1. Britain imported ceramic cavity.
2. Composite rotatable lifting platform.
3. strong technical team and professional sales 4.No special foundations required,low operating cost,easy to operaiton.
5. Low noise and no pollution.
6. Provide the best sincere service to our customers ,we always online 24/7 hours.
7. Low cost, dose not require any welding material.
8. Low consumables, free of maintenance.
9. No black no deformation after welding.
Breif introduction to the machine
The laser welding machine for mould working principle is based on themal energy and focus on spot welding technology. It can effectively deal with all small partts welding and repairing work,which perfect the traditional welding technology in this field . And this technology avoids the thermal strain and post-processing the two threshold, shorten the mould production cycle.
Application for the machine

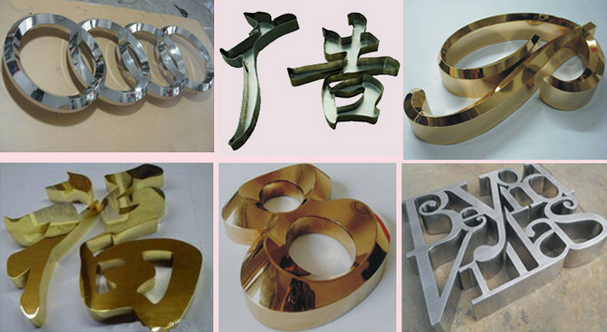

Widely used in aviation,aerospace,sporting goods,jewelry,golf
head,medical,equipment,aluminum,alloy denture,instrumentation,electronic,
mechanical processing,automobile and other industries,especislly for gold and
silver jewelry fill holes,spot weld lines,Mosaic forces and claw foot position welding
Model Features
The laser repairing mold has the following advantages compared with other welding methods such as
argon arc welding :
·Laser welding point diameter is only 0.2mm~2.0mm;
·Use 1064nm wavelength laser, harmless to human body;
·Small heating range, no deformation, won't appear the blow hole; processable material such as, die
steel, stainless steel, beryllium copper and heavy meta,etc.
·Can repair cracks, collapse angle, die side, and the wear of the sealing edge;
·After welding, it can be processed into light surface;
·Can be welded in the extremely hard materials (~HRC 60).
Techinical Parameters

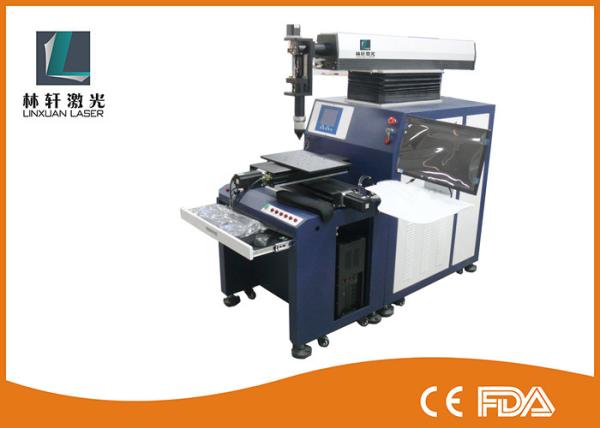

Jewelry Laser welding Machine
Model: LX-D11
Max.Output: 200W
Wavelength: 1064nm
Laser Type: Nd: YAG
Welding Depth: ≤1.2mm
Pulse Frequency: 0-50Hz
Laser Spot Size: 0.2-3mm
Checking System: Microscope
Protective Gas: Argon
Output Focal Length: 80mmm---200mm
Holistic Power: 6KW
Power Supply: 380V/50HZ
Product Tags:
|
|
Water Cooling Jewelry Laser Welder , Laser Soldering Equipment With CCD Camera Images
|
