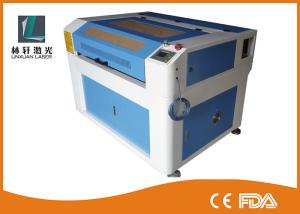

1610 130W CO2 Laser Cutting Machine Acrylic Wood Glass Leather Plexiglass Plastic Rubber
Features
1. Stable machine”s quality, with comprehensive cutting applications
3. Lower investment cost,lower operating cost and lower maintain cost.
4. Non-contact height-adjusting configuration enables to cut almost all materials with lowest cost.
5. Working table:open blade with special treated material.never fray and easy operation,suitable for all kinds of hard materials.
6. Steady chassis:stability and precision during high speed work.
7. Moving system adopts Taiwan HIWIN linear guide and precision gear,matched up with advanced PCI controlled 3-phrase stepper motor to ensure the working accuracy.
Application
Widely used in fine carving , of acrylic ,organosheet,board,bamboo products, paper, glass etc nonmetal material and various kinds of character, graph, image, trademark .
Machine specification
| Model | LX-1060 | LX-6040 | LX-1390 | LX-1610/1612/1325 |
| Laser | CO2 glass sealed laser tube or metallic sealed laser tube |
| Laser power | 40W/60W/80W | 60W/80W/100W/120W/150W |
| Work platform size | 1000x600mm |600×400mm | 1300×900mm | 1600x1000mm/1200mm | 1300x2500mm |
| Engraving speed | ≤1000mm/s |
| Cutting speed | ≤500mm/s |
| Worktable | honey-comb or aluminum knife optional |
| Precision of positioning | ≤±0.025mm |
| Working temperature | 5-30 °C degree |
| Control System | RDCAM DSP Control system |
| SoftWare | Laser Cut software PLT,BMP,DXF,DST,TIF format supported CorelDraw, AutoCAD Software Compatible |
| Transmission | Belt transmission (Standard) Or ball screw transmission optional for extra cost |
| Linear Rail | Taiwan HIWIN linear rail |
| Motor type: | Japan Stepper motor |
| DPI | 2500 |
| Recommended spare parts | Laser tube, Focal lens, Reflection Mirror |
| Power supply | 220V/50hz/1kva 220V/60HZ/1PH 110V/60HZ/1ph optional |
| Machine dimension (mm) | 1600*1100*1300 | 1600*800*1050 | 1950*1470*1300 | 2280*1730*1180 |
| G.W | 230KG | 260KG | 470KG | 550KGS |
Sample show
Packaging & Delivery
1. Wood case or as per required.
2. The delivery lead time would be 7-15 days against down payment.
3. As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder
Competitive Advantages
1. We offer high quality products at competitive price in quick delivery.
2. 100% custom pass guaranteed.
3. Good after-sale service.
4. Flexible and Untraceable payment terms.
